    Static Inline Mixer
    دسته محصولی : Static Mixers and Agitators

    WHAT IS MIN-TEC STATIC MIXER

    Over 4 years, MIN-TEC company has focused on providing and developing the highest quality static mixers. MIN-TEC has the design expertise and in-house manufacturing capability to deliver an effective mixing solution, time after time. Whatever you need to blend or mix, MIN-TEC has a static mixer for your specific application. Whether it be clear PVC, stainless steel, ductile iron, carbon steel, fiberglass or PVDF, we build a static mixers to meet the line size, viscosity, and pressure specifications you require. With MIN-TEC, you'll get consistently high quality mixers, responsive service, and unparalleled technical expertise.



    Static & Inline Mixers

    Static Mixers are highly-engineered motionless mixing devices that allow for the continuous blending of fluids within a pipeline. With no moving parts, static mixers utilize the energy of the flow stream to generate consistent, cost-effective, and reliable mixing.








    Benefits of a MIX-TEC® Static Mixer

    Maintenance-Free

    MIX-TEC Static Mixers are built to last using industrial grade materials specifically tailored to your application

    Low-Cost

    MIX-TEC Static Mixers are a low-cost alternative to traditional tank mixers both at purchase and during the mixer's lifetime. There are no running costs associated with operating a MIX-TEC Static Mixer on top of running your existing pipeline.

    Low Energy Requirements

    Because static mixers are motionless by design, all the energy required to provide a perfect blend is provided by the energy of the flow stream

    No Moving Parts

    Unlike traditional mixers, static mixers remain motionless during the mixing process.

    Designed for Your Application

    All MIX-TEC Static mixers can be custom-tailored to fit your requirement

    Quick Delivery

    MIX-TEC maintains complete control over its production process. All static mixers are built in-house at MIX-TEC manufacturing facility outside Chicago and can be manufactured to meet your project schedule


    MIX-TEC Mixing Technologies

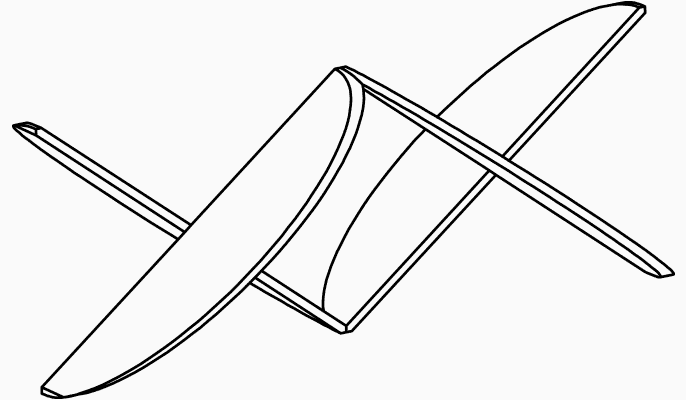

    MIX-TEC Blade™ Mixers

    The patented MIX-TEC Blade™ style element provides MIX-TEC's best-in-class efficient mixing ability for turbulent flow applications combined with minimal pressure (head) loss.

     MIX-TEC's Blade™ elements are available in multiple configurations for specialized, demanding applications

    Standard for most static mixers. Available on all   Stock static mixer and Custom static mixer.

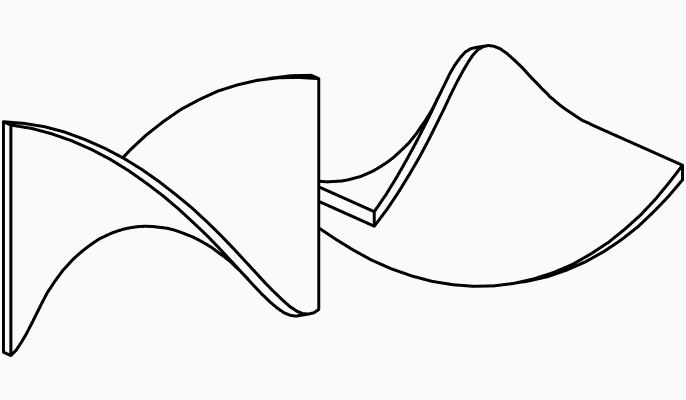

    Helical Mixers

    Helical static mixers are perfect for operation in laminar flow regimes such as slow moving or viscous streams. By continually dividing and recombining flow streams, MIX-TEC helical mixers are capable of optimally blending in a variety of difficult flow conditions.

    Available on most custom static mixer including PVC , Stainless steel, Metal alloy,  Sanitary / Hygienic , Teflon , and Kynar

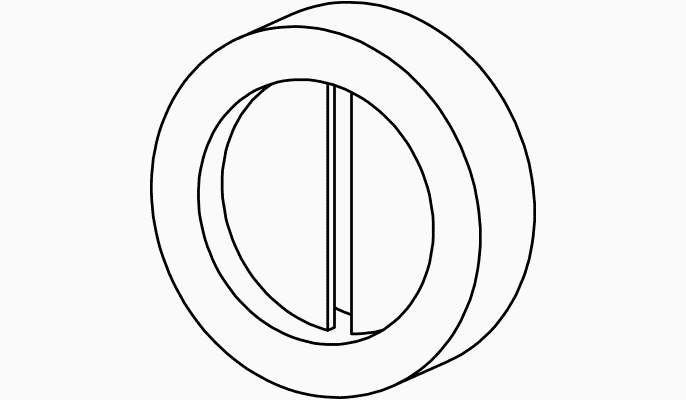

    Wafer Mixers

    For space-constrained, turbulent-flow applications, MIX-TEC wafer static mixers provide an economical and space-efficient design.

    Visit the Wafer Mixer page for more information



    Custom Static Mixers

    MIX-TEC maintains a full line of ready-to-ship, off-the-shelf mixers for simple applications.

    View Custom Static Mixer Lines
